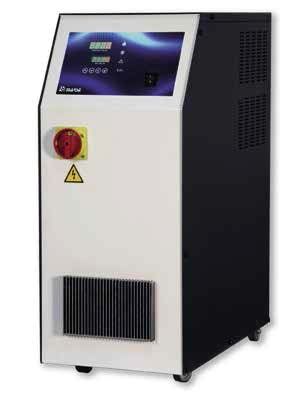

Indirect Cooled Mold Temperature Controller Indirect Cooled Mold Temperature Controller

Indirect Cooled Mold Temperature Controller
Indirektno hlađeni regulator temperature kalupa



SMART WIC Series Technical Specifications:



• PID temperature control in heating and cooling operation
• Hose breakage and leak monitor
• Sensor failure monitor
• Stainless steel tanks and heaters
• Magnetic pump
• Indirect cooling system
• Water level sensor measured via electrode
• Automatic water supply
• Safety thermostat
• Acoustic alarm
• Solid State Relay



Options:


• Liquid flow rate control
• Pump options
• External sensor
• Process temperature return indicator
• Interface TTY 20mA, RS485
• Analog signals input / output 4-20mA
• 0-10 volt signals


WIC Water Models



Max. Temperature Level 140⁰C - 150⁰C - 160⁰C - 180⁰C
Heating Powers: 9 - 16 - 18 kW
Cooling Power: 40 - 80 kW
Pump Pressure: 2.2 - 5.0 - 6.0 bar
Pump Power: 0.5 - 1.0 kW
Pump Flow: 40 - 60 - 200 lt/min



Touch Screen Features and Control


• PID control, ON/OFF control at 4 points
• Temperature ramp in heating and cooling
• Temperature control with external thermocouple, Type Pt1000
• Heating with solid state relays
• Auto Tuning
• Pump pressure indicator
• Return temperature indicator
• Safety thermostat
• Temperature and pressure graphs with file download option
• Pump On / Off digital input
• Secondary setpoint or forced cooling digital input
• Analog outputs 4..20mA process and return temperature
• Analog input 4..20mA Setpoint value
• Language selection
• Display in degrees Celsius / Fahrenheit. Bar / Psi. lit/min. / gallon/min
• Control of equipment via VNC application
• Save and load settings
• Alarm relay
• Acoustic / visual alarm
• Alarm history
• Configurable relays
• Return pressure gauge (pressure units)
• Power cord


Options:


• Serial interface TTY, RS485, RS232, Can Bus Profinet, Ethernet, OPC UA
• Frequency pump
• Process flow screen
• Interconnection with flow monitoring equipment
• Return pressure gauge
