High Speed Double Station Blow Molding Machines
Masine za puhanje velike brzine sa dvostrukom stanicom

Powerjet Double Station Extrusion Blow Molding Machine Specialized for manufacturing bottles and containers which under 10L. Max Bottle Capacity - 10(L) Clamping Force - 65~110(KN) Extrusion Weight(HDPE) - 35~125(kg/hr) Applications - Wide Range Of Bottles For Food & Non-Food FEATURES Toggle balance clamping structure, with platen opening & clamping and mold platen movement by linear guide, to achieve low friction and high speed.

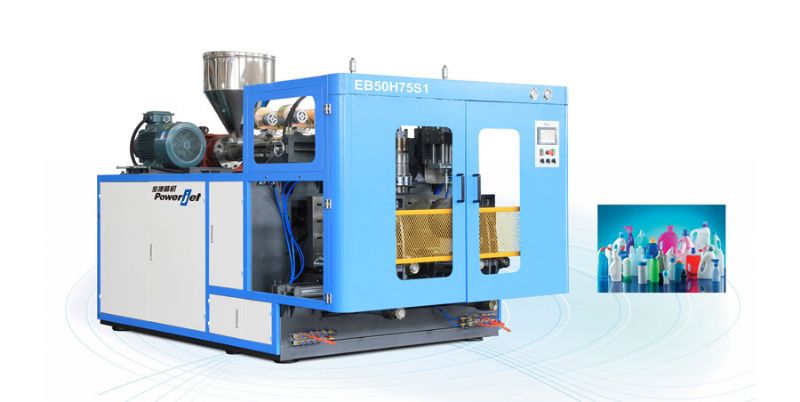

Powerjet Double Station Extrusion Blow Molding Machine

Specialized for manufacturing bottles and containers which under 10L.



Max Bottle Capacity - 10(L)



Clamping Force - 65~110(KN)



Extrusion Weight(HDPE) - 35~125(kg/hr)



Applications - Wide Range Of Bottles For Food & Non-Food



FEATURES
Toggle balance clamping structure, with platen opening & clamping and mold platen movement by linear guide, to achieve low friction and high speed.



Based on the Finite Element Analysis design, and platen, toggle and platen frame made in high intensity nodular cast iron.



High speed mold clamping oil cylinder with differential speed function, and high speed mold moving cylinder with special anti-shock cushion valve structure.



Specially designed screw with high L/D ratio insures good plasticizing and stable extrusion; high precision and no part line die head guarantees customers' top quality requirement.



Multi-screw & multi-die head can be adopted to improve the quality of the product and lower down the cost of material.



Multiple-way PID controlled temperature heating is precise and stable.
